SM-MINI01

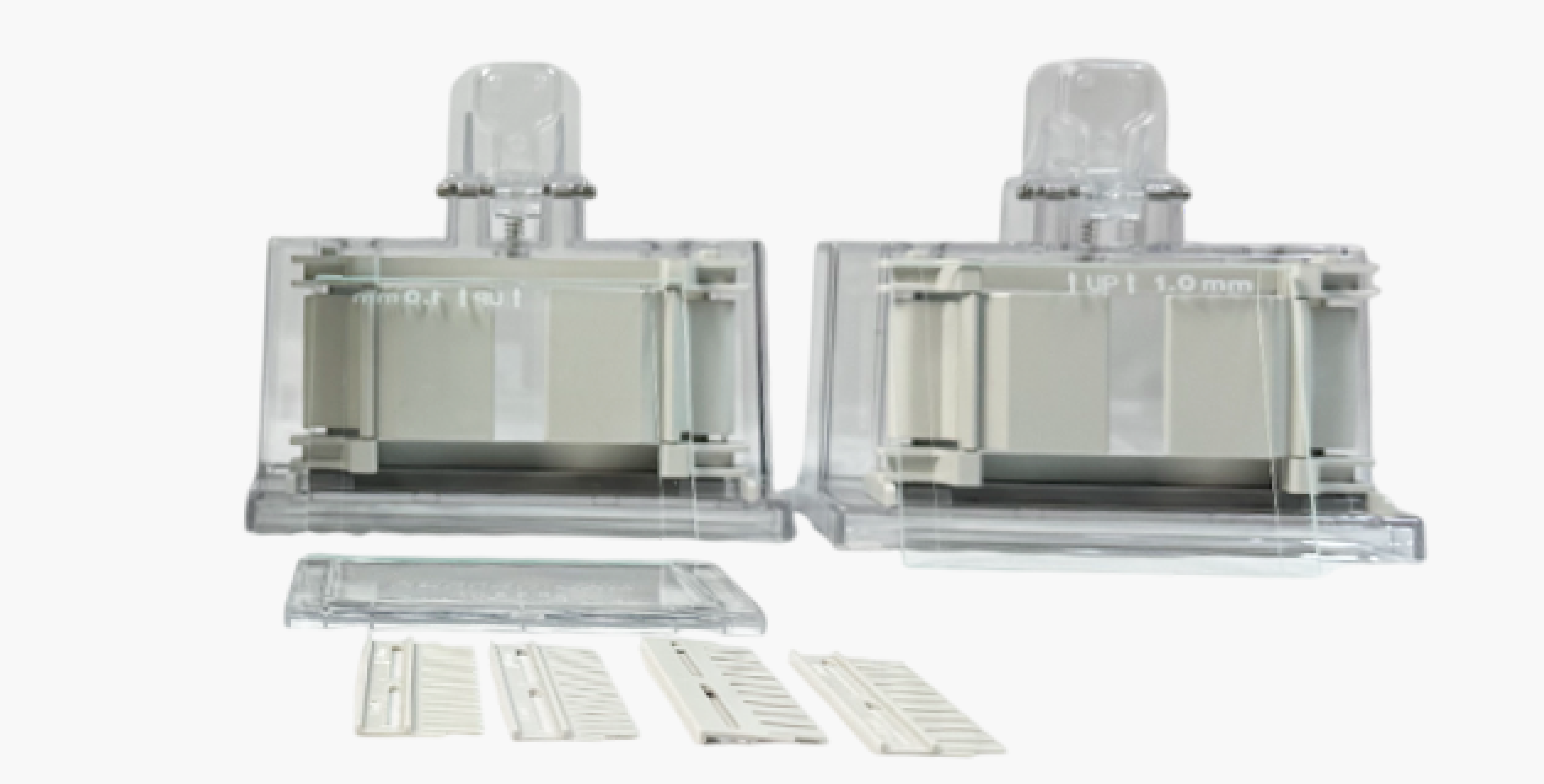

Vertical Electrophoresis Chamber
Vertical electrophoresis tank (double plate). Device for vertical electrophoresis of nucleic acid and protein simples. The separation of these molecules is based on their size and charge in an acrylamide matrix. This method, also known as PAGE (polyacrylamide gel electrophoresis), is a technique routinely used in proteomics laboratories or molecular studies involved in immunology, antigen-antibody interactions, and especially in protein analysis.
Technical data
| Gel area | 8.3 x 7.3 cm |
|---|---|
| Gel thickness | 0.75, 1.0, 1.5 mm (optional) |
| Number of wells per comb | 10, 15 |
| Buffer solution volume | 900 mL |
| Number of gels | 2 |
Note: We recommend using this device with the Science Med SR-600 power supply, which is purchased eparately.
Accesories
Lid (power supply)
Bottom tank
Electrode core
Gel glass thick plate
Gel lass thin plate
10-well comb
15-well comb
Gel casing stand
Casing frame
Baffle
Gel release tool
